Urban Stormwater Drain Overflow Analysis Using Hydraulic Calculations and SWMM Simulation
Envision
Piston
Abstract
Abstract
This project presents the hydraulic capacity analysis and simulation of an urban stormwater drainage system using hydraulic principles and EPA-SWMM modeling. The study focuses on evaluating the performance of a rectangular concrete stormwater drain located in the Edappally region of Kochi under heavy rainfall conditions. Peak runoff generated from the urban catchment was estimated using the Rational Method, while the carrying capacity of the existing drain was determined using Manning’s equation based on open channel flow theory.

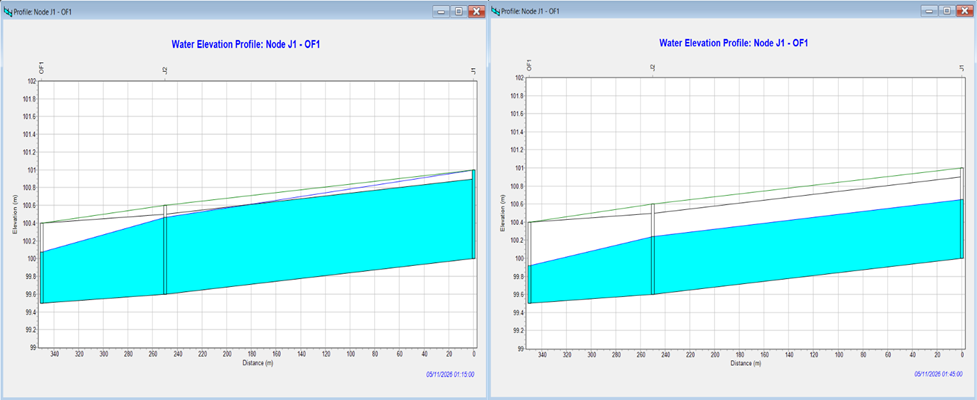

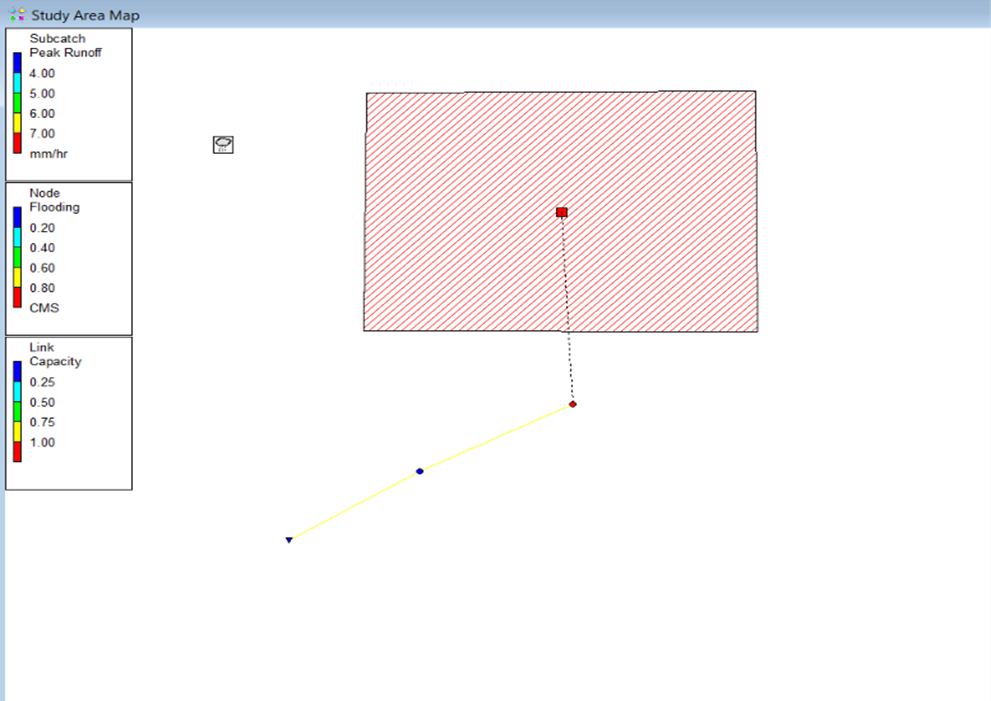

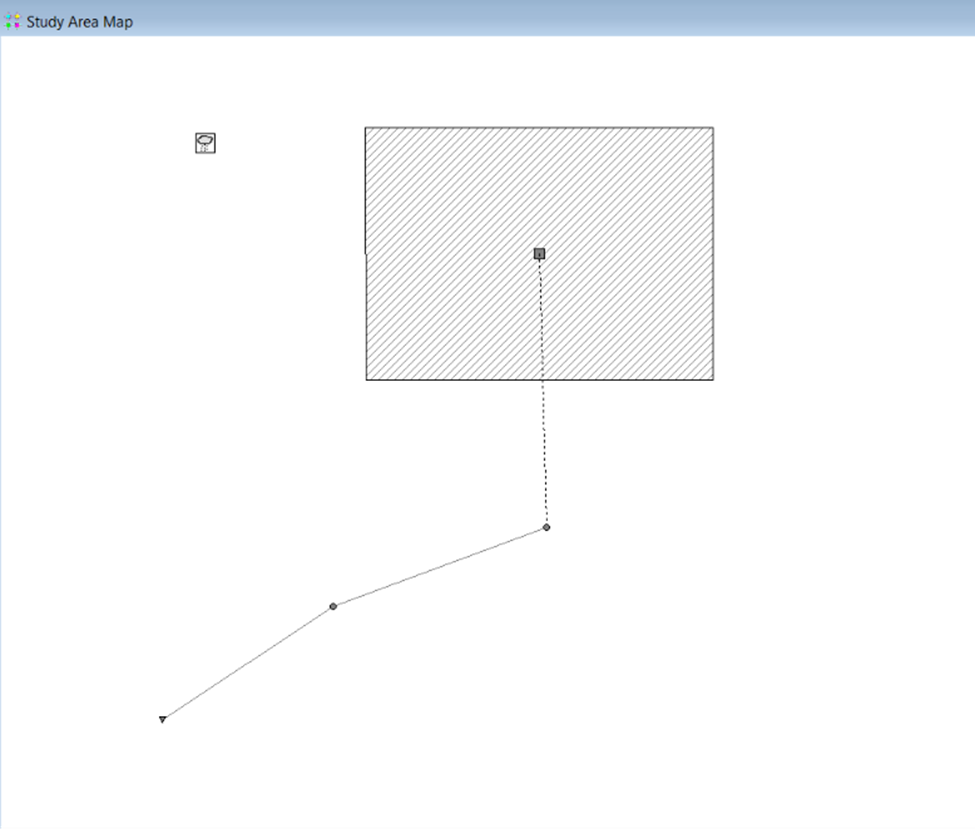

The project employs a comparative approach involving manual hydraulic calculations and software-based simulation to identify surcharge and flooding conditions in the drainage network. A stormwater drainage model was developed using EPA Storm Water Management Model (SWMM) Official Site, where rainfall, catchment, and conduit parameters were provided as inputs to simulate runoff and flow behavior during storm events. Simulation results indicated that the existing drainage system was hydraulically inadequate to safely convey the generated runoff, leading to overflow and waterlogging conditions.

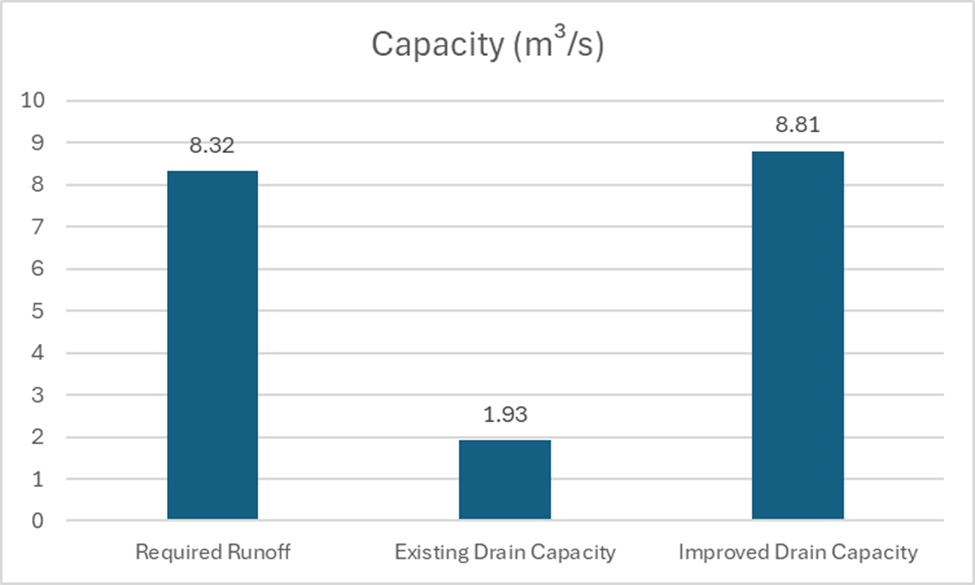

To improve drainage performance, modified drain dimensions and channel slope were proposed and analyzed. The improved design significantly increased the discharge carrying capacity and reduced flooding conditions. The project demonstrates the practical application of fluid mechanics, runoff estimation, hydraulic analysis, and computational modeling techniques in urban stormwater management and flood mitigation studies.
Abstract
Abstract
This project presents the hydraulic capacity analysis and simulation of an urban stormwater drainage system using hydraulic principles and EPA-SWMM modeling. The study focuses on evaluating the performance of a rectangular concrete stormwater drain located in the Edappally region of Kochi under heavy rainfall conditions. Peak runoff generated from the urban catchment was estimated using the Rational Method, while the carrying capacity of the existing drain was determined using Manning’s equation based on open channel flow theory.
The project employs a comparative approach involving manual hydraulic calculations and software-based simulation to identify surcharge and flooding conditions in the drainage network. A stormwater drainage model was developed using EPA Storm Water Management Model (SWMM) Official Site, where rainfall, catchment, and conduit parameters were provided as inputs to simulate runoff and flow behavior during storm events. Simulation results indicated that the existing drainage system was hydraulically inadequate to safely convey the generated runoff, leading to overflow and waterlogging conditions.
To improve drainage performance, modified drain dimensions and channel slope were proposed and analyzed. The improved design significantly increased the discharge carrying capacity and reduced flooding conditions. The project demonstrates the practical application of fluid mechanics, runoff estimation, hydraulic analysis, and computational modeling techniques in urban stormwater management and flood mitigation studies.
